Tin - Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines

Ask Lasest Price
Brand Name :	TOB Casting Bronze Bearings
Certification :	ISO 16949
Price :	negotiated
Payment Terms :	T/T
Supply Ability :	negotiated
Delivery Time :	negotiated

Add to Cart

Product Details
Company Profile

Tin - Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines

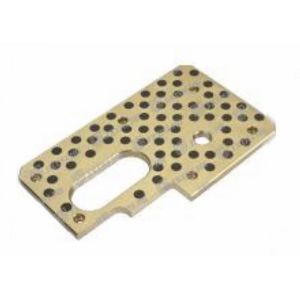

Tin-Copper With Solid Lubricant Plugs Casting Bronze Slide Block

JDB Copper Slide Block is backed with Tin-Copper. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. OILES 500# Copper Slide Block is widely used on the anti-abrasion and anti-erosion parts, which work in conditions with heavier load and mediate running velocity.

JDB Copper Bearings is a special formulation of Tin-Copper based body surface at a certain angle and density of embedded solid lubricant specially formulated by precision machining.

By made mid-sized holes in order and then insert the solid lubricant Plugs into the holes in the Copper bushing to apply the bushings under oil-free conditions.

For instance, on light industrial machines, machine tools, moving belt in the drying machine, door of the fireplace, on no oil parts on the building, metallurgy and transportation machines, etc.

Chemical Compositions

Product NO.	Chemical Compositions
TOB 052	Cu	Sn	Pb	Zn	Al Si	S	Fe	P	Ni	Sb
TOB 052	83~88	4.0~6.0	4.0~6.0	4.0~6.0	<0.01	<1.0	<0.3	<0.1	<2.0	<0.2

Physical and Mechanical Performance

Performance Index		Data	Performance Index			Data
Density	g/cm³	8.7	Hardness		HB	≥60
Linear Expansion Coefficient	10^-5/℃	1.6-1.8	Flexibility Coefficient		KN/mm²	85-115
Heat-conducting Coefficient	W/(m·k)	46-63	Tensility		%	≥15
Tensile Strength	N/mm²	≥240	Friction	Oil Lubrication	μ	0.03
Anti-compact Tenacity	≥KJ/m^3	100-200	Friction	Dry Friction	μ	0.16

Application Condition Limits

Lubrication Conditions		Non- Lubrication	Periodical Lubrication	Consecutive Lubrication
Working Temperature Limits	℃	-40~+300	-40~+150	-40~+150
Max. Load pressure	N/mm²	40	40	40
Max. Linear Velocity	m/s	0.40	0.85	1.00
Max. PV Value	N/mm²·m/s	1.00	1.65	2.00
