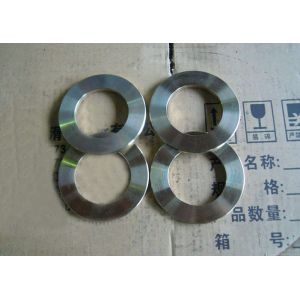

Copper Cast Bronze BearingsThrust Washer With Solid Lubricant Plugs

Ask Lasest Price
Brand Name :	TOB Casting Bronze Bearings
Certification :	ISO 16949
Price :	negotiated
Payment Terms :	T/T
Supply Ability :	negotiated
Delivery Time :	negotiated

Add to Cart

Product Details
Company Profile

Copper Cast Bronze BearingsThrust Washer With Solid Lubricant Plugs

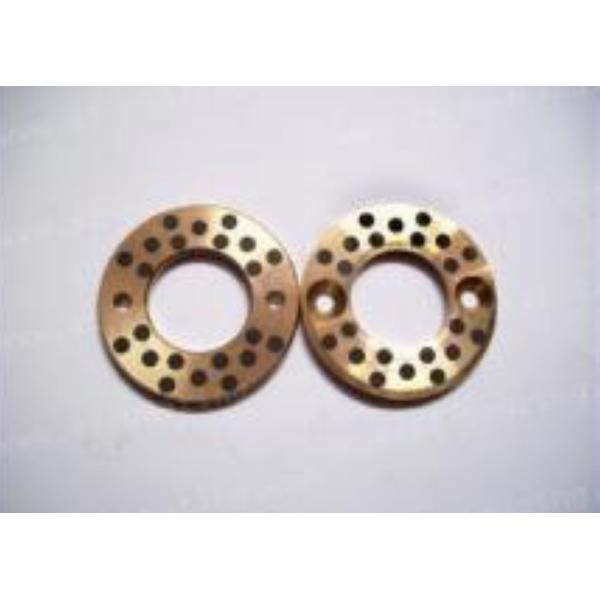

Tin-Copper With Solid Lubricant Plugs Casting Bronze Thrust Washer

OILES 500# Thrust Washer is backed with Tin-Copper. OILES 500# Thrust Washer surface is regularly and finely machined with sockets in which particular solid lubricant is filled.

JDB Copper Bearings is a special formulation of Tin-Copper based body surface at a certain angle and density of embedded solid lubricant specially formulated by precision machining.

OILES 500# Thrust Washer Copper based and processed by turning technics. OILES 500# Thrust Washer can be made oil grooves on the inner surface and outside surface to reach a better lubricating effect.

For instance, on light industrial machines, machine tools, moving belt in the drying machine, door of the fireplace, on no oil parts on the building, metallurgy and transportation machines, etc.

Chemical Compositions

Product NO.	Chemical Compositions
TOB 052	Cu	Sn	Pb	Zn	Al Si	S	Fe	P	Ni	Sb
TOB 052	83~88	4.0~6.0	4.0~6.0	4.0~6.0	<0.01	<1.0	<0.3	<0.1	<2.0	<0.2

Physical and Mechanical Performance

Performance Index		Data	Performance Index			Data
Density	g/cm³	8.7	Hardness		HB	≥60
Linear Expansion Coefficient	10^-5/℃	1.6-1.8	Flexibility Coefficient		KN/mm²	85-115
Heat-conducting Coefficient	W/(m·k)	46-63	Tensility		%	≥15
Tensile Strength	N/mm²	≥240	Friction	Oil Lubrication	μ	0.03
Anti-compact Tenacity	≥KJ/m^3	100-200	Friction	Dry Friction	μ	0.16

Application Condition Limits

Lubrication Conditions		Non- Lubrication	Periodical Lubrication	Consecutive Lubrication
Working Temperature Limits	℃	-40~+300	-40~+150	-40~+150
Max. Load pressure	N/mm²	40	40	40
Max. Linear Velocity	m/s	0.40	0.85	1.00
Max. PV Value	N/mm²·m/s	1.00	1.65	2.00
